Laser Welding Machine

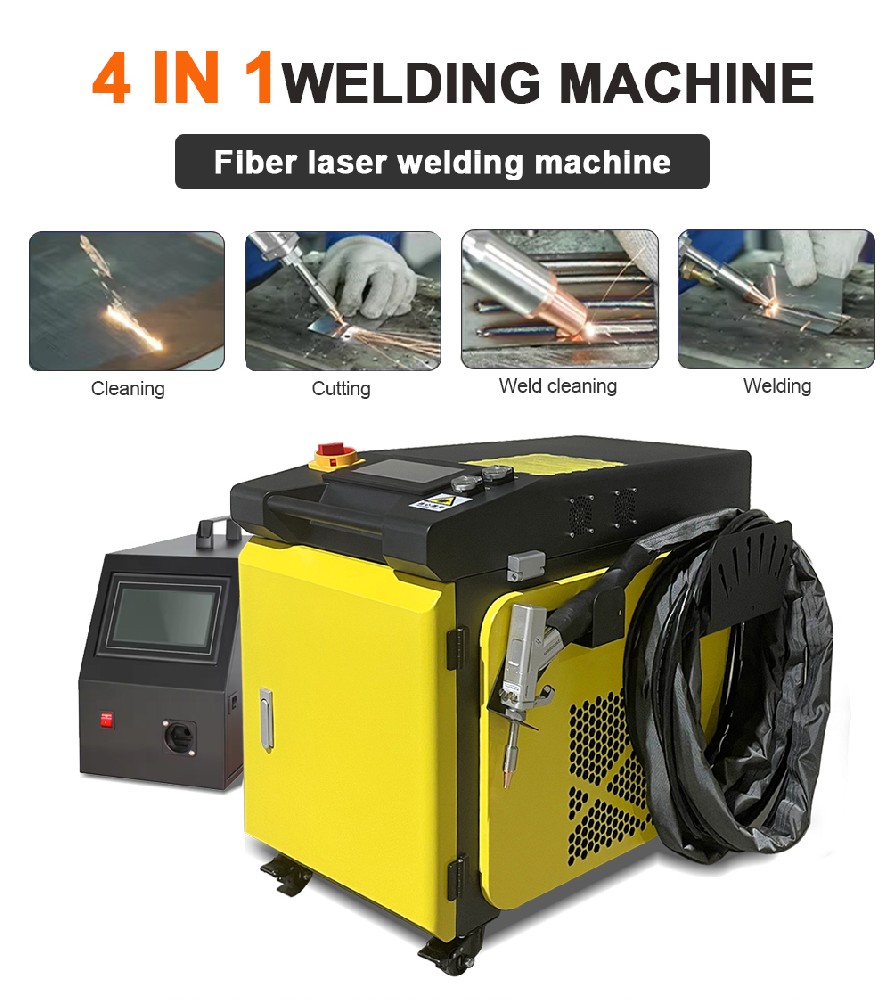

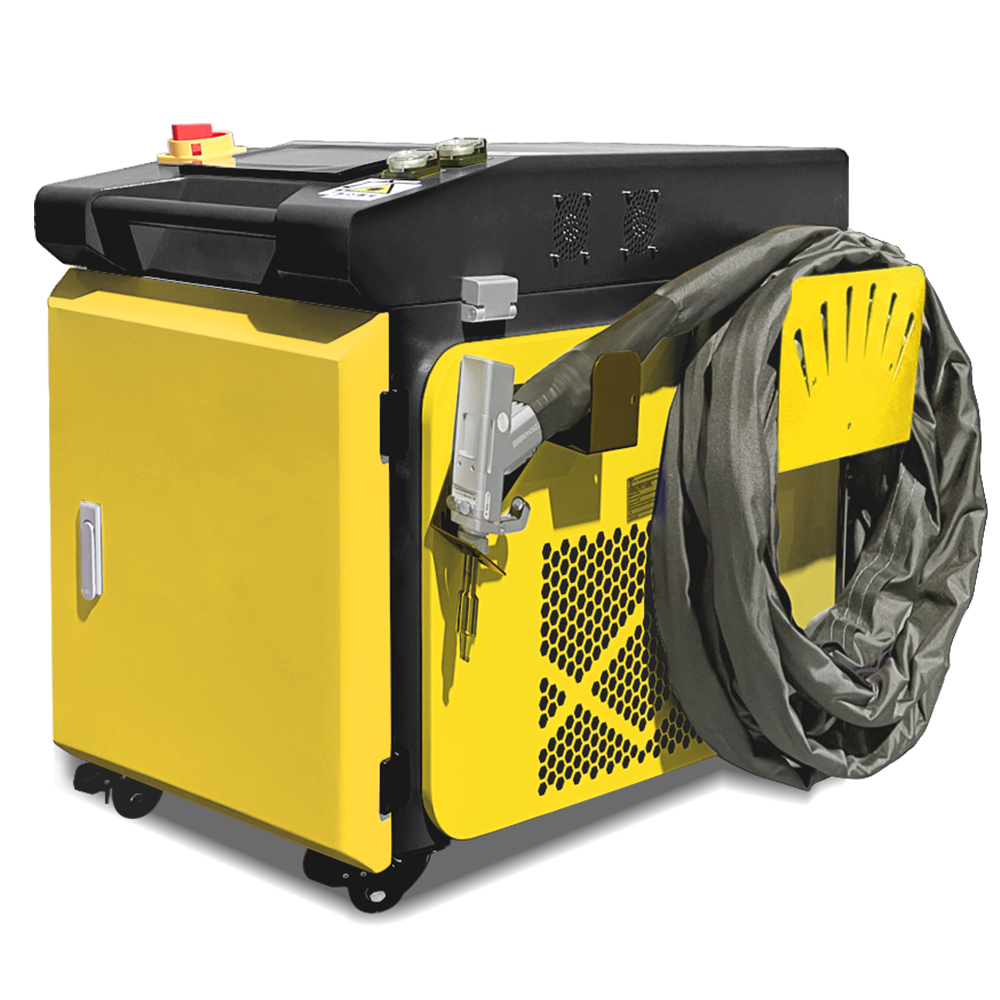

2000W 4 in 1 laser welding machine

The laser welding machine uses a high-energy-density laser beam as the heat source. After being focused, the laser beam irradiates the material surface, causing local melting to form a molten pool. The welding process is completed once the molten pool cools down.It features high precision, enabling the welding of tiny components with minimal deformation; high efficiency, with rapid heating that suits mass production; and compatibility with various materials such as stainless steel and titanium alloy. It is widely used in precision welding scenarios like electronic components, automotive parts, and medical devices.

4 in 1 LASER WELDING MACHINE/ WELDING/WELDED CLEANING/CLEANING/ CUTTING

laser welding machine

PRODUCT DESCRIPTION

laser welding machine

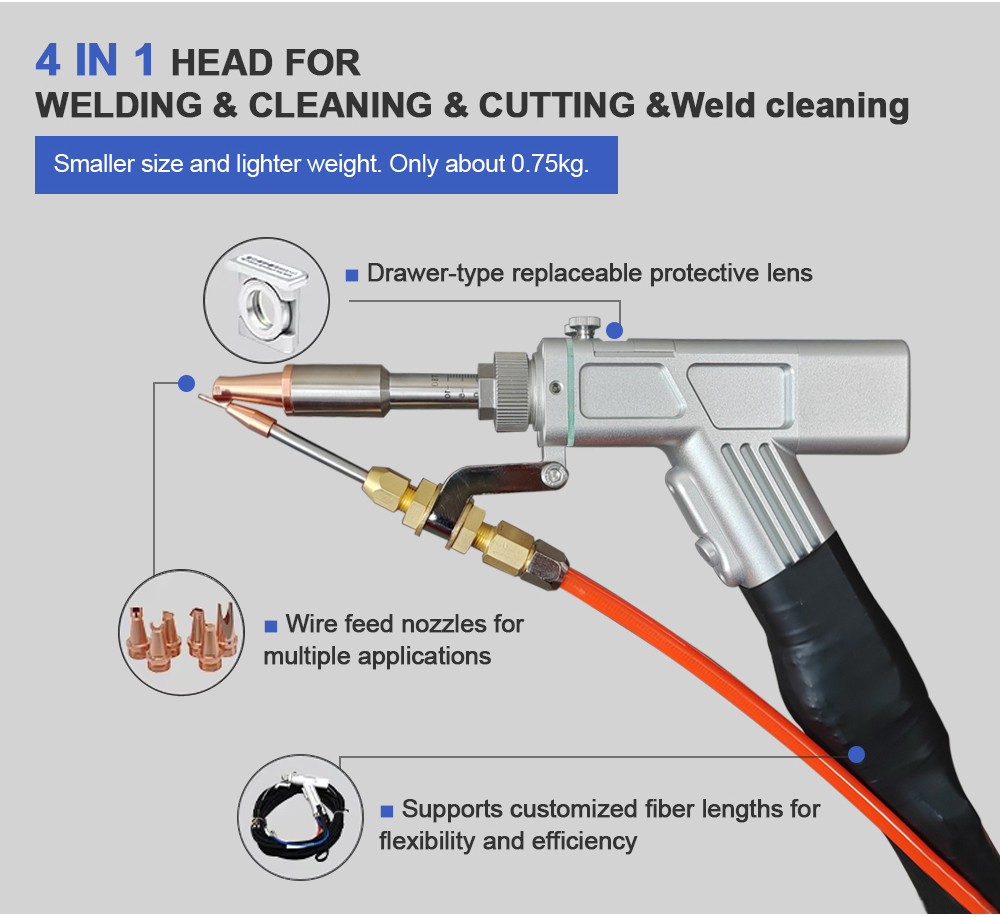

laser gun

Welding Gun

Stable and reliable qualityof laser welding head, which can complete a variety offorms of welding taskes easily.

SUP21T/23T

Protective and focusing mirrors upgraded to drawer design. No need to hold the magnifying glass to find screws, open the cover to

monitor the status of the lens at any time;

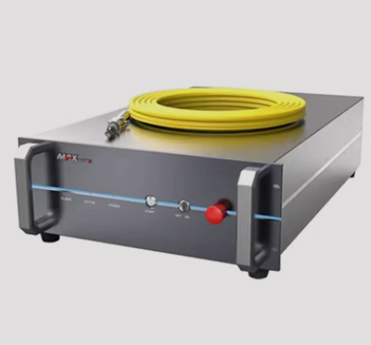

laser source MAX

Brand laser sources

Adopt famous brand, Raycus/BWT/MAX/

RECI laser source. Highly integrated and

maintenance-free system, high reliability;

Fully sealed structure, small size and light

weight; High photoelectric conversion

efficiency, energy saving; Laser power

continuously adjustable.

Suplaser

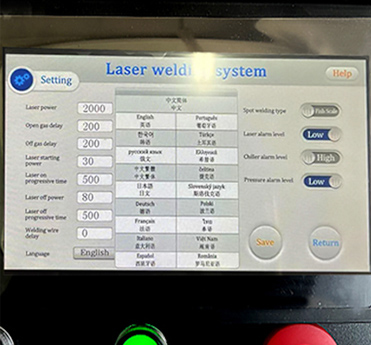

Control System with Touch Screen

Easy to operate; Supports procedure storage;Provides 19 language options; Supports

factory-customized system language; We

 will setparameters well and you only need

to modify afew parameters accordingto your material.

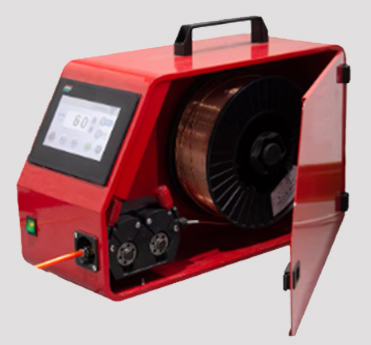

Automatic wire feeder

Automatic wire feeder

Supports different materials & diameters,

Improve welding speed & efficiency.

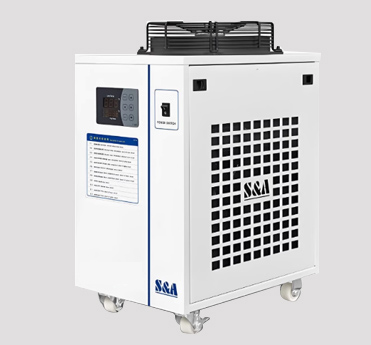

water chiller

Indusrial water chiller

We use water cooler specialized for laser

welding machine with high temperature

control precision. Double circulation system can meet the cooling of laser body and

welding head at the same time.

MAIN PARAMETERS

Wavelength1080nm±5nm
Counting of spot welding1~999
Continuous working time≥24hours
Wire Feeding Equipment

Included

Welding MaterialIron,Stainless Steel,Aluminium,Carbon Steel,etc.
Laser TypeContinuous fiber laser
Long-Term Power Stability

±1%

Modulation Frequency20KHZ
Power Adjustment Range10-100%
Switching Light Time20 US
Fiber Length10M/customizable lengthening
Cooling MethodWater Coolling
Power Supply220V/50HZ/60HZ

laser welding machine
