Products Description
Main Introduction

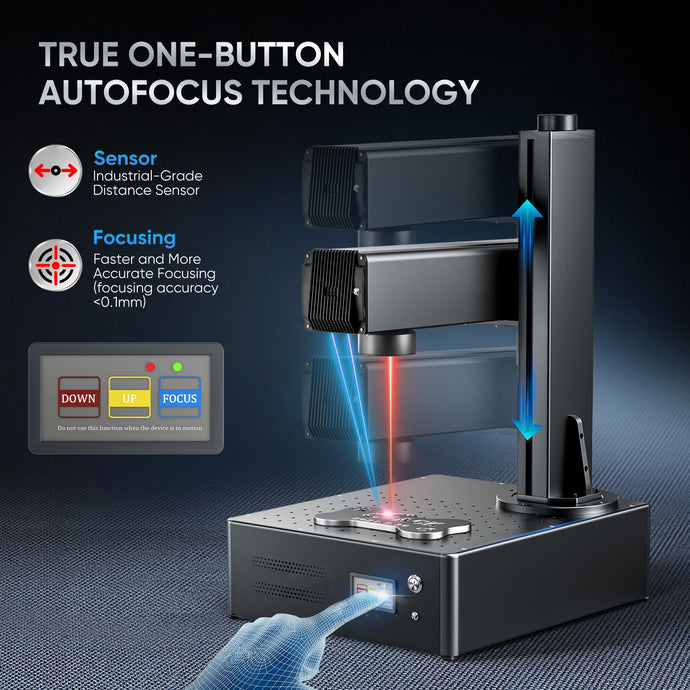

 | One-Touch Autofocus The all-new Model comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use. |

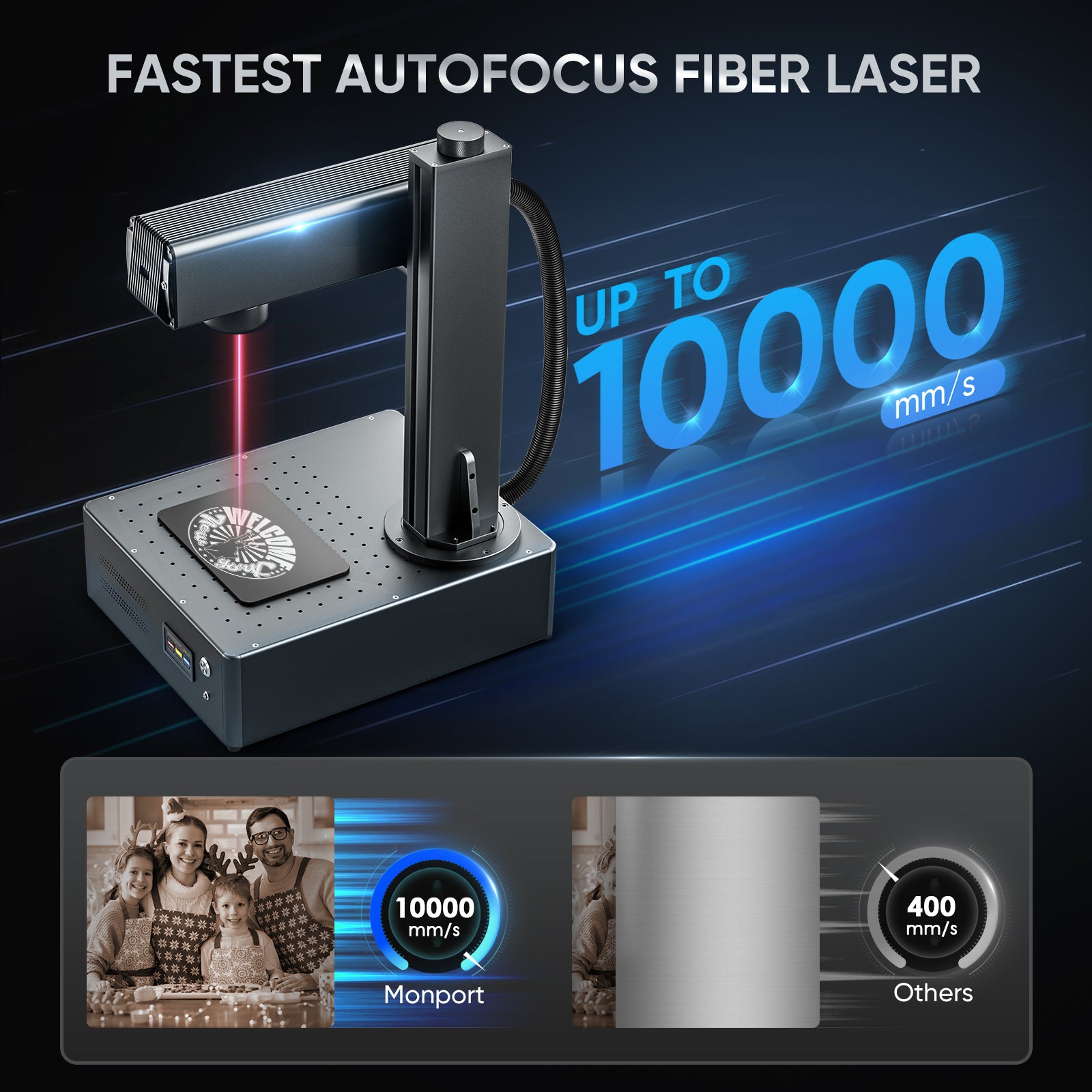

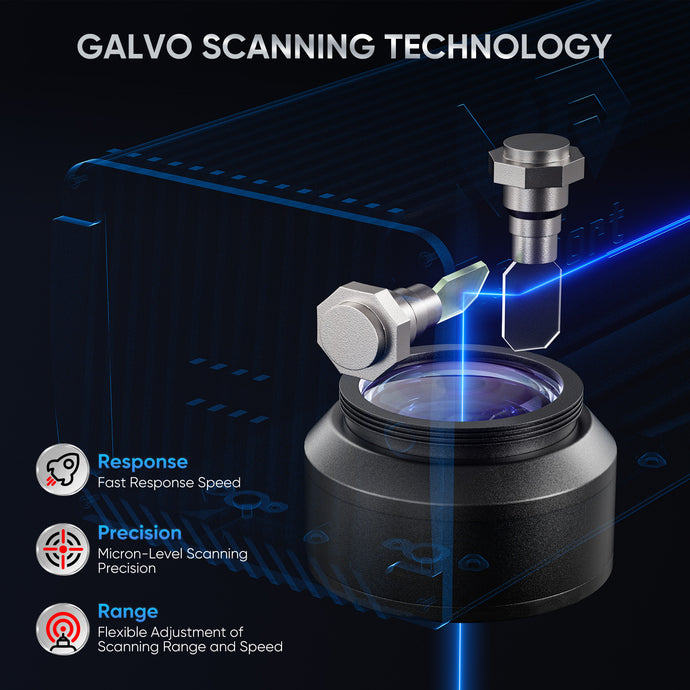

Faster, More Precise, Custom-Engineered Performance The newly designed galvanometer system features high-quality silicon material reflectors, enabling a maximum speed of 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed. |  |
 | 0.01mm Professional-Grade Accuracy Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use. |

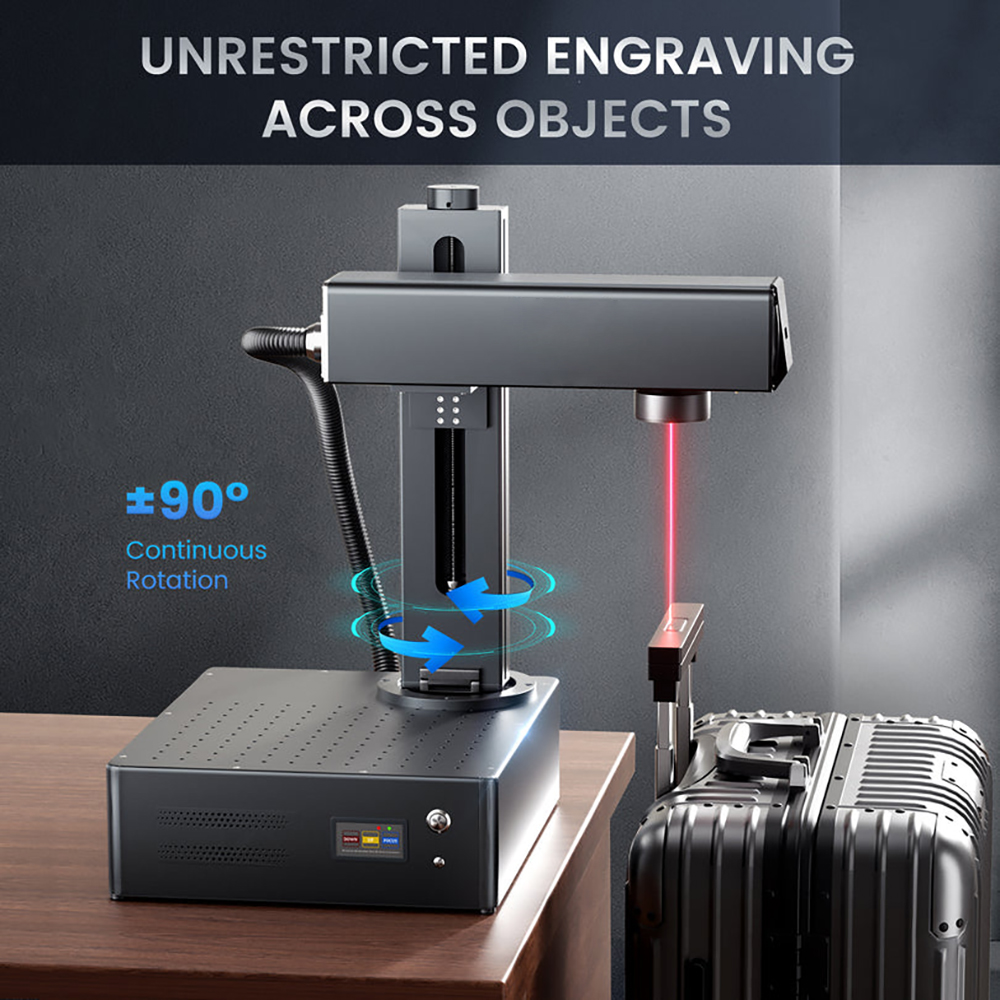

90° Rotary Marking Enabled with a vertically rotating mast capable of infinite 90° rotation, HONGYUE LASER MOPA boasts unrestricted high-definition marking capabilities over all angles and surfaces of workpieces. |  |
Main parameters
| Rated Power | 6*W |
| Beam Quality M2 | ＜1.5 |
| Maximum Pulse Energy | 2 mJ |
| Max. Marking Depth on a Single Pass | 0.004in. (0.1mm) |
| Max. Humidity | <70% |
| Temp. Range | 32–104°F(0 - 40°C) |
| Expected Service Life | 100,000 hr. |
| Input Power | 110V/220V 50/60Hz |
| Central Wavelength | 1064 nm |
| Laser Frequency | 1-4000kHz |
| Pulse Width | 2-500 ns |
| Processing Area | 6.9 x 6.9 in.（175x175mm） |
| Beam Diameter | Beam Diameter |
| Max. Marking Speed | 10000mm/s（393.7 ips） |
| Min. Marking Depth | 0.0002 in.(0.005 mm) |
| Min. Line Width | 0.006 in.(0.15 mm) |
| Precision | ±0.1 µm |
Provided Operating Software | Ezcad Lightburn compatible |
 |  |  |

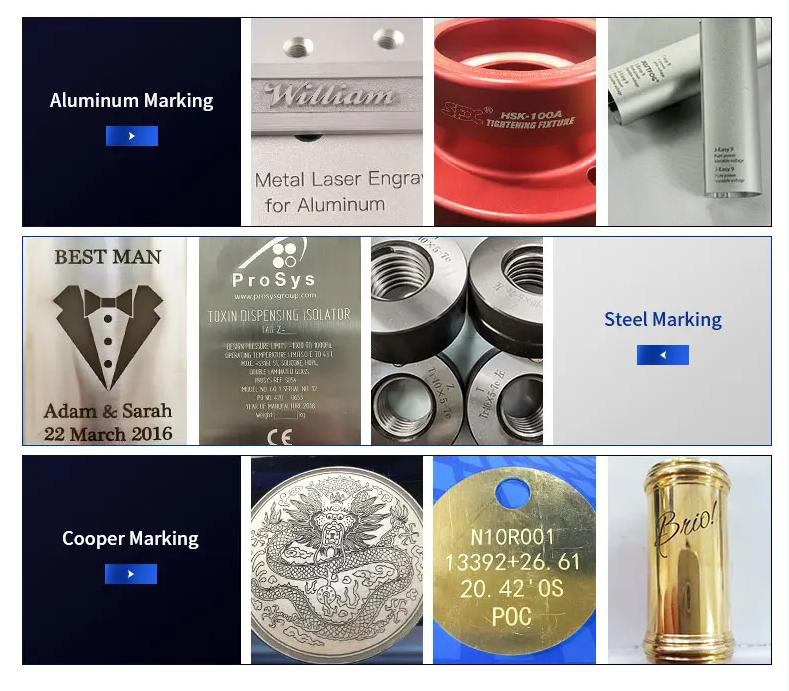

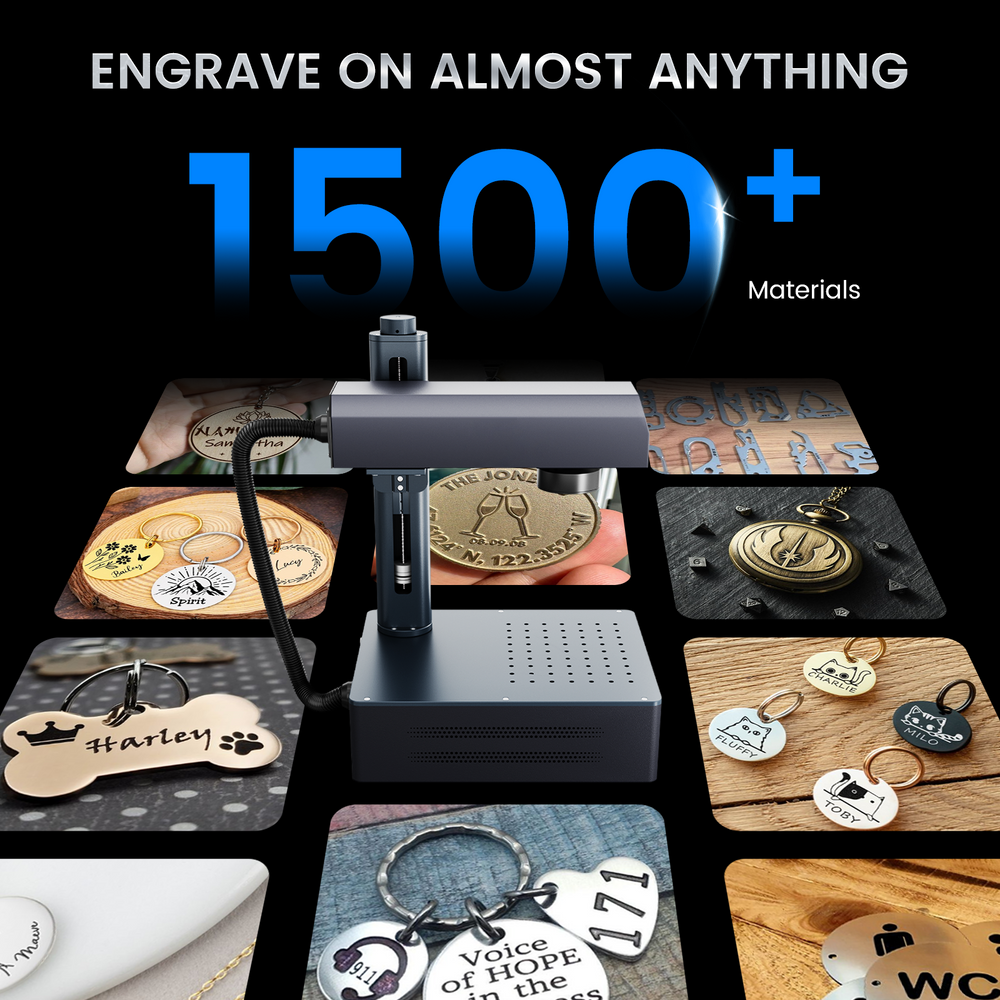

Craft on Various Materials with Our Precision Engraver
